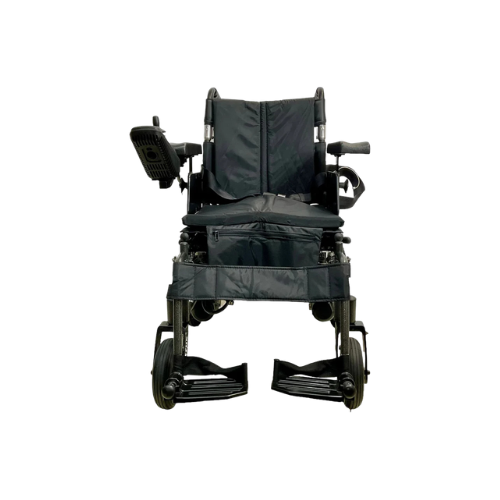

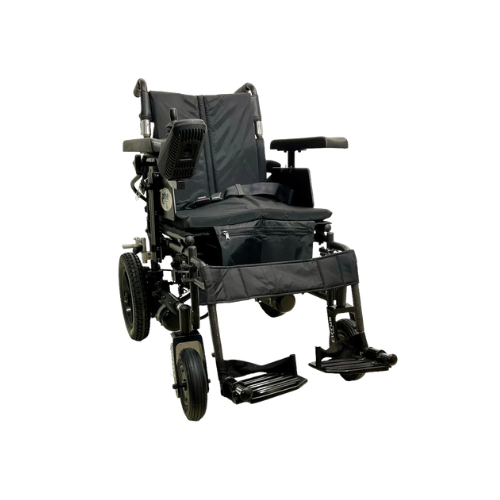

Cirrus Plus EC

Please visit the store for more information or call us at: (905) 828-1980

Category: Tag:

Description

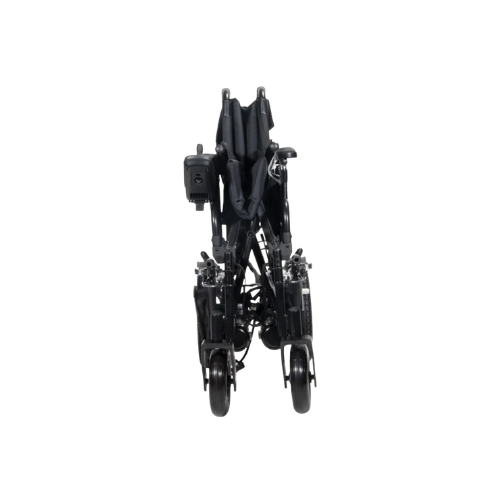

  • Foldable, lightweight frame for easy portability. (Figure A)
  • Attractive steel cross-brace frame.
  • Armrests are padded, adjustable and removable.
  • Adjustable-length controller mount.
  • Adjustable-tension back upholstery.
  • Swing-away footrests with heel loops.
  • Optional elevating leg rests (Item #CPELR) sold separately.
  • Optional 2” seat depth extension Item #STDS1818N sold separately (only available on CPN18FBN).
  • Positioning belt included.
  • Padded back upholstery with storage pouch and cushioned seat.
  • Programmable controller.
  • Flat-free, non-marking tires.
  • Easy free-wheel operation.
  • Manual wheel locks.
  • General foam seat cushion included.
  • Anti-tip wheels.

Please visit the store for more information or call us at: (905) 828-1980

Specifications

HCPCS K0822
Weight Capacity 300 lbs.
Top Speed 5 mph
Maximum Range 15 miles
Turning Radius (16″ | 18″ | 20″) 30″ | 32″ | 33″
Climbing Angle 6°
Ground Clearance 4″
CPN16FBA Dimensions 42.5″ (L) x 24″ (W)
CPN18FBA Dimensions 42.5″ (L) x 26″ (W)
CPN20FBA Dimensions 42.5″ (L) x 28″ (W)
Floor-to-Seat Height 18.5″
CPN16FBA Seat Dimensions 16″ (W) x 16″ (D)
CPN18FBA Seat Dimensions 18″ (W) x 16″ (D)
CPN20FBA Seat Dimensions 20″ (W) x 16″ (D)
Controller PG VSi 50A
Motors (2) 24V x 320W x 4600 rpm
Batteries (pair) 12V x 36AH (U1)
Charger 4A Offboard
Brakes Electromagnetic
Caster Wheels 8″ x 2″ Solid
Drive Wheels 12.5″ x 2.25″ Flat-free
Base Weight 90 lbs.
Battery Weight (pair) 56 lbs.
Total Weight 146 lbs.
Warranty on Frame Lifetime
Warranty on Electronic Controller/Drive Train Components 14 Months
Warranty on Batteries 6 Months

Downloads

Owners-Manual

Owners Manual

Catalog-Page

Catalog Page

image-flat

Parts Diagram

image-flat

Order Form

Products

Item # Seat HCPCS* UOM
CPN16FBA Select

16″ Sling Seat K0822 1/cs
CPN18FBA Select

18″ Sling Seat K0822 1/cs
CPN20FBA Select

20″ Sling Seat K0822 1/cs
