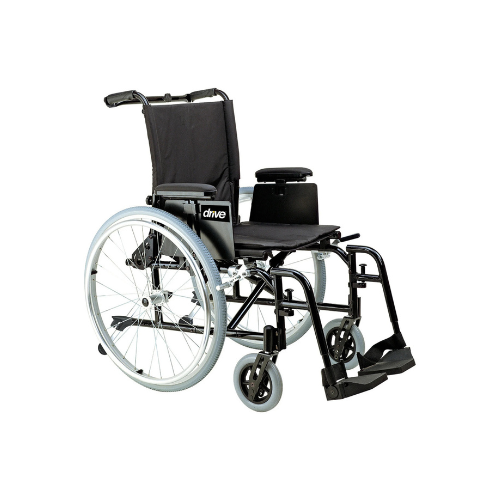

Cougar Wheelchair
Price range: $870.11 through $993.14
Description
Product Summary
- Ultra-light, weighs less than 27 lbs. (K0005).
- Forward folding back to reduce size.
- Tool-free back height adjustable from 17″–20 ½”.

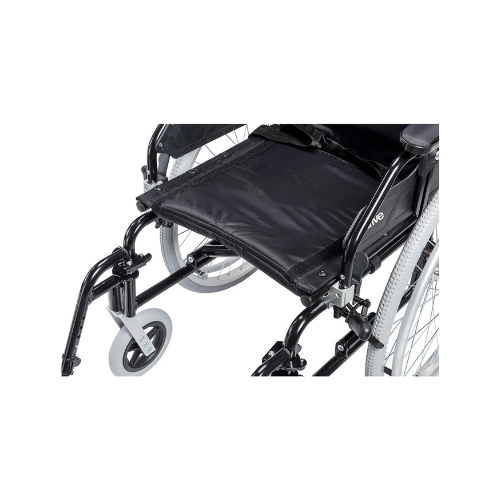

- Seat depth adjustable from 16″-18″.
- Multi-position back can adjust 15°.
- Rigidity bar provides support.

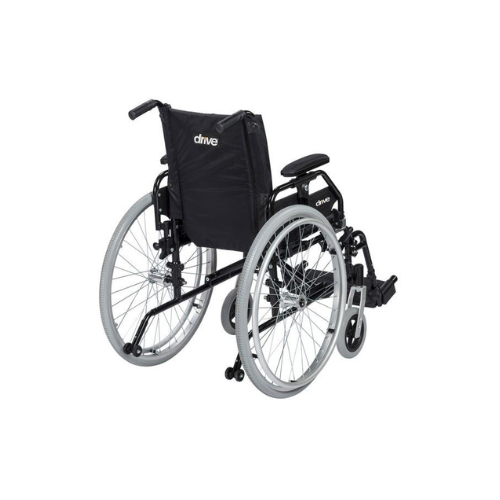

- Quick-release rear wheels. (Figure A)
- Semi-Pneumatic tires on a 24″ spoke wheel provide a smooth, true roll.
- 3″ of depth adjustment in the overall wheelbase.
- Front casters are angle adjustable and height adjustable in three positions.

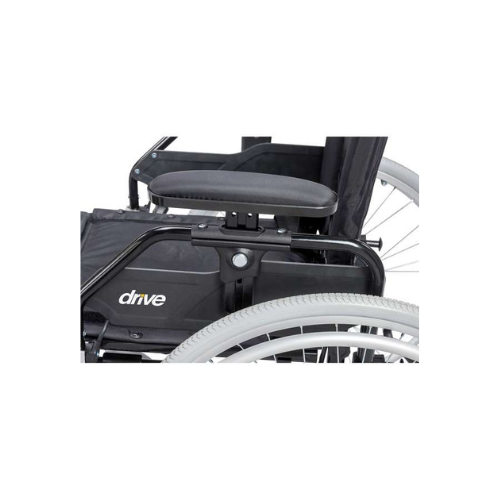

- Arm rest can be flipped allowing 2″ width adjustment.
- Nylon upholstery is breathable, lightweight and comfortable.
- Back folds forward for storage. (Figure B – C)
- Adjustable aluminum wheel locks.
- Swing-away footrests swing in and out.
- Lightweight, composite foot plates with heel loops come standard.
- Optional adjustable height arm. (sold separately)
Additional information
| Select |
16" Seat ,18" Seat |
|---|---|
| Option |
Detachable "T" style desk arm, elevating leg rest ,Detachable "T" style desk arm, swing-away footrest |
Products
Products
| Item # | Seat Width | Armrest | Product Front Riggings | HCPCS* | UOM | |
|---|---|---|---|---|---|---|
| AK516ADA-AELR | Select | 16″ | Detachable “T” Style Desk Arm | Swing-away Elevating Leg rest | K0005+E0951+K0195 | 1/cs |
| AK516ADA-ASF | Select | 16″ | Detachable “T” Style Desk Arm | Swing-away Footrest | K0005+E0951 | 1/cs |
| AK518ADA-AELR | Select | 18″ | Detachable “T” Style Desk Arm | Swing-away Elevating Leg rest | K0005+E0951+K0195 | 1/cs |
| AK518ADA-ASF | Select | 18″ | Detachable “T” Style Desk Arm | Swing-away Footrest | K0005+E0951 | 1/cs |
Specifications
Specifications
| Width Open with 16″ Seat | 24″ |
|---|---|
| Width Open with 18″ Seat | 26″ |
| Width Closed | 12″ |
| Height | 37″ |
| Seat-To-Floor Height | 17.5″ – 19.5″ |
| Seat Depth | 16″ |
| Length with Riggings | 44″ |
| Product Weight | 27 lbs. |
| Carton Shipping Weight | 32 lbs. |
| Weight Limit | 250 lbs. |
| Warranty | Limited Lifetime |
Downloads
Downloads
Owners Manual
Catalog Page
Parts Diagram
Download Video
Order Now
Order Now
[gravityform id=”1″ title=”false” description=”false”]
Parts
Parts
| Diagram Number | Part Description | Part Number | |
|---|---|---|---|
| 2 | Select | Armrest “T” Frame | STDS2A4301 |
| 3 | Select | Arm Panel | STDS2A431R |
| 3 | Select | Arm Panel | STDS2A431L |
| 4 | Select | Cross Frame Assist | STDS2A4305 |
| 5 | Select | Seat Upholstery | STDS2A4306 |
| 5 | Select | Seat Upholstery | STDS2A4308 |
| 5 | Select | Seat Upholstery | STDS2A4312 |
| 7 | Select | Brake Tip | STDS2A4335 |
| 8 | Select | Cross Frame- 16″ | STDS2A43X6 |
| 8 | Select | Cross Frame- 18″ | STDS2A43X8 |
| 8 | Select | Cross Frame- 20″ | STDS2A432X |
| 9 | Select | Side Frame | STDS2A4317 |
| 10 | Select | Footrest Lock Receiver | STDS2A4309 |
| 11 | Select | Fork Stem Bearings | STDS2A4333 |
| 12 | Select | Fork | STDS2A4304 |
| 13 | Select | Caster | STDS2A4310 |
| 14 | Select | Front Axle | STDS2A4313 |
| 15 | Select | Caster Bearing | STDS2A4314 |
| 17 | Select | Heel Strap Post | STDS1M4047 |
| 23 | Select | Bearing Housing | STDS2A4321 |
| 24 | Select | Footrest Release Knob | STDS2A4322 |
| 25 | Select | Brake- Right | STDS2A432R |
| 25 | Select | Brake- Left | STDS2A432L |
| 26 | Select | Seat rail saddle | STDS4058 |
| 27 | Select | Arm Receiver | STDS2A4302 |
| 28 | Select | Rear Bearing | STDS2A4323 |
| 29 | Select | Rear Axle Bolt | STDS2A4324 |
| 31 | Select | Anti-tipper | STDS2A4326 |
| 32 | Select | Handrim | STDS2A4330 |
| 33 | Select | Rear Wheel Assm | STDS2A4300 |
| 34 | Select | Rear Axle Bracket | STDS2A4329 |
| 35 | Select | Handrim Screw and Spacer | STDS2A4327 |
| 36 | Select | Back Adjustable Bracket | STDS2A4328 |
| 37 | Select | Pivot Extension | STDS2A4303 |
| 38 | Select | Back Upholstery | STDS2A4316 |
| 38 | Select | Back Upholstery | STDS2A4318 |
| 38 | Select | Back Upholstery | STDS2A4320 |
| 39 | Select | Back Cane | STDS2A4307 |
| 40 | Select | Handgrip | STDS871 |
| 41 | Select | Back Support Bar | STDS2A4336 |
