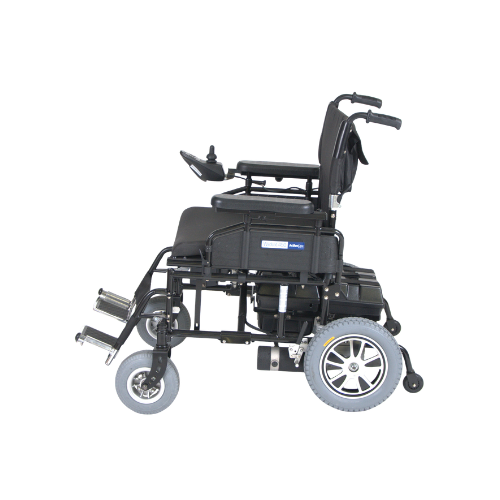

Wildcat 450
Product Summary
- Foldable, lightweight frame for easy portability. (Figure A)
- Armrests are padded, adjustable and flip back.
- Adjustable length controller mount.
- Optional swing-away controller arm (Item #AA1800) sold separately.
- Swing-away footrests with calf strap.
- Optional elevating leg rests (Item #AE2100-450) sold separately.
- Positioning belt included.
- Padded back upholstery with storage pouch and cushioned seat.
- Programmable controller.
- Flat-free, non-marking tires.
- Easy free-wheel operation.
- Wheel locks.
- General foam seat cushion included.
- Anti-tip wheels.
Please visit the store for more information or call us at: (905) 828-1980
Description
Please visit the store for more information or call us at: (905) 828-1980
Specifications
Specifications
| HCPCS | K0824 |
|---|---|
| Weight Capacity | 450 lbs. |
| Top Speed | 4 mph |
| Maximum Range | 15 miles |
| Turning Radius | 41″ |
| Climbing Angle | 6° |
| Ground Clearance | 4″ |
| Dimensions | 31″ (W) x 48″ (L) |
| Floor-to-Seat Height | 20″ |
| Seat Dimensions | 24″ (W) x 20″ (D) |
| Controller | Dynamic Shark 60A |
| Motors (2) | 24V x 350W x 3800 rpm |
| Batteries (pair) | 12V x 50AH |
| Charger | 5A Offboard |
| Brakes | Electromagnetic |
| Caster Wheels | 9″ x 2.5″ Solid |
| Drive Wheels | 12.5″ x 2.25″ Flat-free |
| Base Weight | 100 lbs. |
| Battery Weight (pair) | 73 lbs. |
| Seat Weight | N/A |
| Total Weight | 173 lbs. |
| Heaviest Piece Weight | N/A |
| Warranty on Frame | Lifetime |
| Warranty on Electronic Controller/Drive Train Components | 14 Months |
| Warranty on Batteries | 6 Months |
Downloads
Downloads
Owners Manual
Catalog Page
Parts Diagram
Start Guide
Order Form
Products
Products
| Item # | Seat | HCPCS* | UOM | |
|---|---|---|---|---|
| WILDCAT450BK24SS | Select | 24″ Sling Seat | K0824 | 1/cs |
Parts
Parts
| Diagram Number | Part Description | Part Number | |
|---|---|---|---|
| 1 | Select | Push Handle Assm. | LPW180021 |
| 2 | Select | Back Upholstery (20″) | LPW180014-20 |
| 2 | Select | Back Upholstery (22″) | LPW182214 |
| 2 | Select | Back Upholstery (24″) | LPW182414 |
| 3 | Select | Arm Pad | LPW180011 |
| 3 | Select | Arm Pad Screws (2) | LPW180025-01 |
| 4 | Select | Anti-Tip Assm. | LPW180010 |
| 5 | Select | Drive Wheel Assm. | LPW180009 |
| 6 | Select | Gear Box Assm. (Right) | LPW182002-02 |
| 6 | Select | Gear Box Assm. (Left) | LPW182002-01 |
| 8 | Select | Caster Fork | LPW182007 |
| 9 | Select | Footrest Assm- (Right) | LPW180018R |
| 9 | Select | Footrest Assm- (Left) | LPW180018L |
| 9 | Select | ELR’S 3″ Spacing PR | AE2100 |
| 10 | Select | Hand Brake Assm.- (Right) | LPW180020-02 |
| 10 | Select | Hand Brake Assm.- (Left) | LPW180020-01 |
| 11 | Select | Calf Strap (20″) | LPW180019 |
| 11 | Select | Calf Strap (22″) | LPW182219 |
| 11 | Select | Calf Strap (24″) | LPW182419 |
| 12 | Select | Battery 50 ah (2 needed) | LRB402308 |
| 13 | Select | Joystick | LPW182001 |
| 13 | Select | Joystick Cable | LPW182001-02 |
| 14 | Select | Right Armrest Assm. | LPW180012R |
| 14 | Select | Left Armrest Assm. | LPW180012L |
| 15 | Select | Seat Cushion (20″) | LPW180016-20 |
| 15 | Select | Seat Cushion (22″) | LPW182216 |
| 15 | Select | Seat Cushion (24″) | LPW182416 |
| 16 | Select | Seat Upholstery (20″) | LPW182016 |
| 16 | Select | Seat Upholstery (22″) | LPW182215 |
| 16 | Select | Seat Upholstery (24″) | LPW182415 |
| 17a | Select | Rear Battery Pack Cover | LPW182006-01 |
| 17b | Select | Front Battery Pack Cover | LPW182006-1A |
| 17c | Select | Battery Box | LPW182006-02 |
| 17d | Select | Battery Box Strap | LPW-FS450 |
| 17e | Select | Bracket Insert Battery Box | LPW-FBI |
| 18 | Select | Battery Frame- 20″ | LPW180000-23 |
| 18 | Select | Battery Frame- 22″ | LPW180000-24 |
| 18 | Select | Battery Frame- 24″ | LPW180000-25 |
| 19 | Select | Seat Belt | LDR410017 |
| 20 | Select | Battery Charger 5 Amps | LRA402210 |
| 21 | Select | Backrest Folding Lever | LPW180013-03 |
| 22 | Select | Shark Controller Module | LPW180024 |
| 22 | Select | Mounting Screws (2) | LDM400001-08 |
| 23 | Select | Fork Stem Bearings | LDR410006-01 |
| 24 | Select | Armrest Lock Lever | LPW180012-05 |
| 25 | Select | Cross Brace 20″ | LPW180020-20 |
| 25 | Select | Cross Brace 22″ | LPW180027-22 |
| 25 | Select | Cross Brace 24″ | LPW180027-24 |
| 26 | Select | Side Frame, Right | LPW180033-02 |
| 26 | Select | Side Frame, Left | LPW180033-01 |
