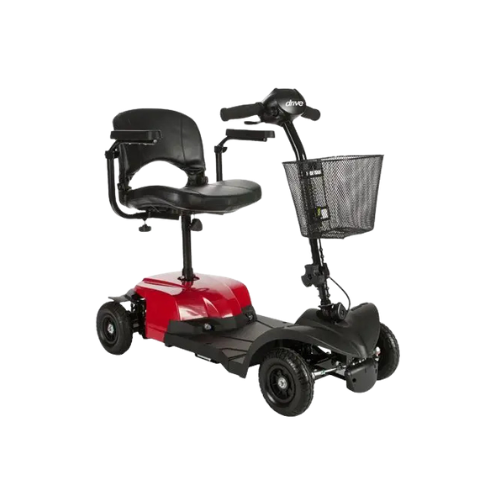

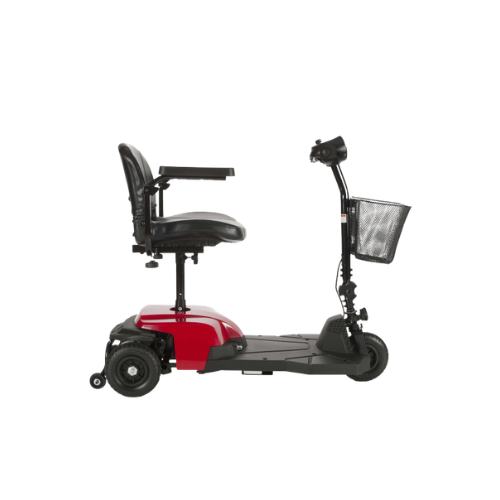

Bobcat X4

Product Summary

  • Ultra-lightweight for superior portability.
  • Quick and easy disassembly.
  • Color-through shroud hides scuffs and scratches.
  • Angle adjustable flip-up armrests for maximum comfort and convenient boarding and exiting.

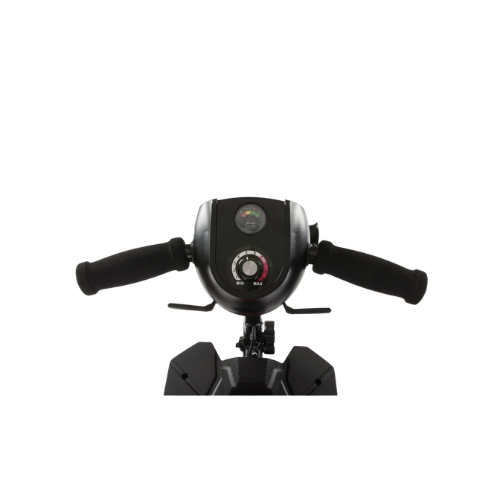

  • Easy finger-pull throttle control.
  • Height adjustable seat with fold down backrest
  • Flat-free, non-marking tires for worry-free travel.
  • Large, metal carry basket.
  • Easy-to-adjust tiller angle places the scooter's controls in the ideal position.
  • Anti-tip wheels for additional safety.
  • Easy freewheel operation.

Please visit the store for more information or call us at: (905) 828-1980

Description

Please visit the store for more information or call us at: (905) 828-1980

Specifications

Weight Capacity 265 lbs.
Top Speed 4 mph
Maximum Range 7.5 miles
Turning Radius 53″
Climbing Angle
Ground Clearance 2.5″
Dimensions (L x W) 42″ x 19.25″
Floor-to-Seat Height 17″-19″
Seat Dimensions (W x D) 16.5″ x 13.5″
Controller PG S-Drive 45A
Motor 24V x 270W x 4700 rpm
Batteries (pair) 12V x 10AH
Charger 1.5A Offboard
Brakes Electromagnetic
Wheels 8″ x 2″ Flat-Free
Base Weight 59 lbs.
Battery Weight (pair) 18 lbs.
Seat Weight 16 lbs.
Total Weight 93 lbs.
Heaviest Piece Weight (Front Section) 38 lbs.
Warranty on Frame Lifetime
Warranty on Electronic Controller/Drive Train Components 14 months
Warranty on Batteries 6 months

Downloads

Owners-Manual

Owners Manual

Catalog-Page

Catalog Page

image-flat

Parts Diagram

video_download_icon

Download Video

Products

Item # Seat Color HCPCS* UOM
BOBCATX4 Select

16.5″ Folding Seat Red 1/ea

Parts

bobcat-x4-parts

Diagram Number Part Description Part Number
1 Select Throttle Assy. BC31009N
2 Select Speed Dial C12-071-00100
3 Select Battery Gauge BC31208B
4 Select Upper Tiller Cover C08-050-00301
5 Select Ignition Switch C18-071-00100
6 Select Key C18-071-00200
7 Select Lower Tiller Cover C08-071-00100
8 Select Tiller C02-071-00100
9 Select Handgrip Foam S31003
10 Select Basket Bracket BC35051
11 Select Basket S35003-P
12 Select Tiller Lock Set C08-069-01001
13 Select Tiller Swivel Assembly C02-069-00401
14 Select Tiller Bearing Set C29-016-00301
15 Select Front Frame C01-069-00103
16 Select Front Bumper Bracket C01-071-00100
17 Select Front Bumper C08-069-04800
18 Select Front Fork S03-069-00200
19 Select “L” Steering Axle C03-069-00101
20 Select Connecting Rod Set BC350103
21 Select Steering Axle C03-010-00305
22 Select Front Wheel BC31142
23 Select Front Wheel Bearing BC35046
24 Select Anti-Tip Wheel S31026
25 Select Front Shroud C08-071-00600
26 Select Footrest Shroud C08-071-00200
27 Select Rear Shroud C08-071-00400
28 Select Battery Cover Red C08-071-00512
29 Select Rear Frame C01-070-00300
30 Select Transaxle BC350112
31 Select Motor C09-071-00200
32 Select Electromagnetic Brake C09-071-00300
33 Select Rear Wheel BC31132
34 Select Front & Rear Wheel Bolt S350016910
35 Select Battery Harness & Jumper C18-071-00601
36 Select Charger Port C18-071-00800
37 Select Battery BATT12V10AH
38 Select Seat/Seat Plate (no arms) S07-071-00100
39 Select Right Armrest Assembly C07-071-00400
40 Select Left Armrest Assembly C07-071-00300
41 Select Arm Pad & Screws C07-071-00301
42 Select Armrest Knob S31052
44 Select Seat Post Bolt Assembly C07-071-00101
45 Select Front Wire Harness C18-071-00300
46 Select 20 Amp Circuit Breaker C07-071-00100
47 Select 40 Amp Fuse BC40AFUSE
48 Select Seat Plate C07-050-00203-C
49 Select Controller C10-034-00100
51 Select Battery Hold Down Strap C17-071-00200
52 Select Battery Cradle C17-071-00100
53 Select Motor Cable C18-071-00400
54 Select Power Cable Set C18-071-00500
55 Select Seat Upholstery S07-071-00102
56 Select Back Upholstery S07-071-00101
57 Select Frame Latch C08-069-02900-C
