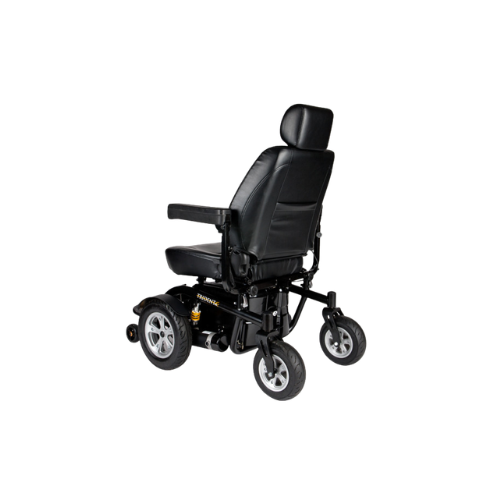

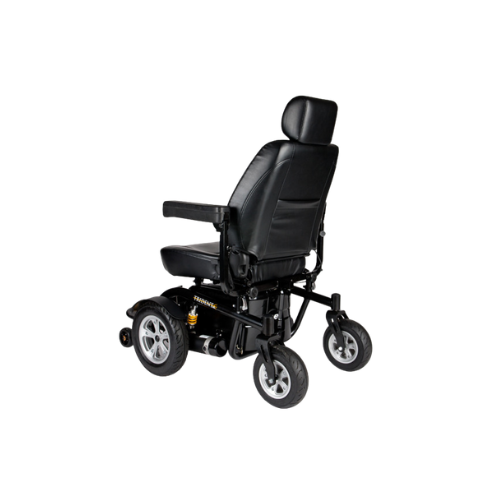

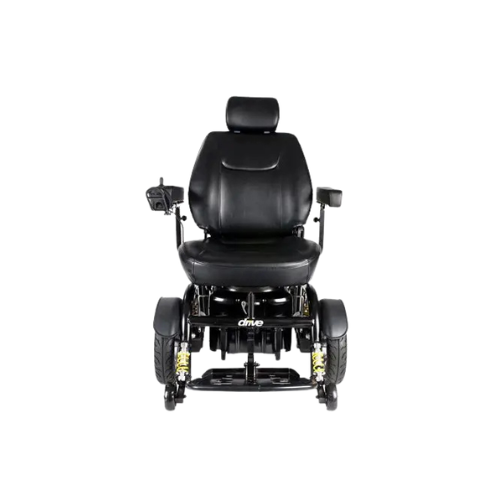

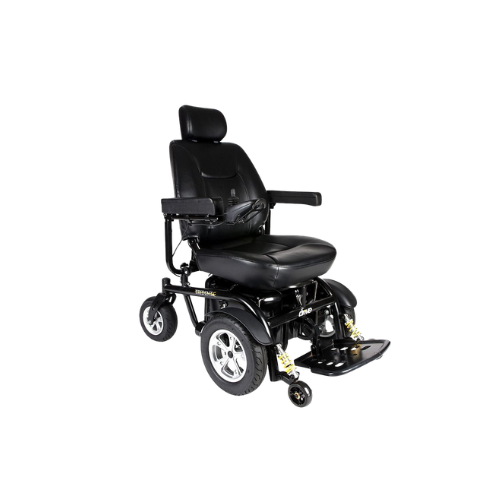

Trident HD
Please visit the store for more information or call us at: (905) 828-1980
Description
- Shroudless design offers easy access to internal components and batteries.
- Semi-Reclining captain seat with adjustable headrest is height and depth adjustable.
- Armrests are padded, adjustable and removable.
- Available with 22″ or 24″ width Captain’s seat.
- Quick-release lever allow for easy seat removal.
- Flip-up footplate includes rubber bumper to prevent damage and is height, depth and angle adjustable.
- Positioning belt included.
- Programmable Controller.
- Black, flat-free non-marking wheels.
- Large, front-anti-tip wheels feature suspension for safety, smoother ride and enhanced obstacle handling.

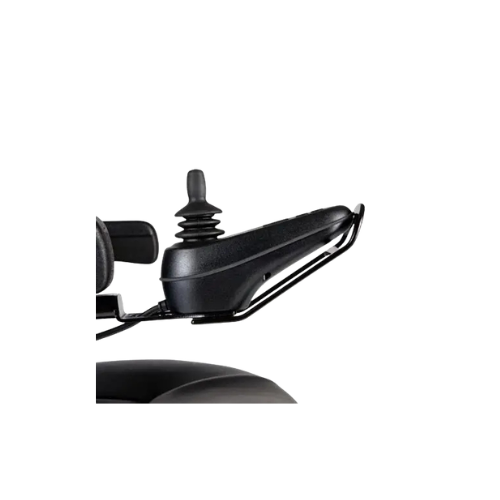

- Joystick is protected by metal casing.
- Easy free-wheel operation.
- Slide-out battery tray for easy access.
- Optional swing-away controller arm sold separately.
- Optional elevating leg rests sold separately.
Please visit the store for more information or call us at: (905) 828-1980
Specifications
Specifications
| HCPCS | K0825 |
|---|---|
| Weight Capacity | 450 lbs. |
| Top Speed | 4 mph |
| Maximum Range | 15 miles |
| Turning Radius | 29″ |
| Climbing Angle | 6° |
| Ground Clearance | 2.5″ |
| Dimensions | 48″ (L) x 25.5″ (W) |
| Seat Dimensions | 22″ x 20″; 24″ x 22″ |
| Controller | PG VR2 70A |
| Motor | 24V x 450W x 2700 rpm |
| Batteries (pair) | 12V x 50AH |
| Charger | 5A |
| Brakes | Electromagentic |
| Caster Wheels | 10″ x 3″ |
| Drive Wheels | 14″ x 3″ |
| Base Weight | 98 lbs. |
| Battery Weight (pair) | 66 lbs. |
| Seat Weight | 48 lbs. |
| Total Weight | 212 lbs. |
| Warranty on Frame | Limited Lifetime |
| Warranty on Electronics, Controller, Drive-Train Components | 14 months |
| Warranty on Batteries | 6 months |
Downloads
Downloads
Owners Manual
Catalog Page
Parts Diagram
Order Form
Products
Products
| Item # | Seat | HCPCS* | UOM | |
|---|---|---|---|---|
| 2850HD-22 | Select | 22″ Captain Seat | K0825 | 1/ea |
| 2850HD-24 | Select | 24″ Captain Seat | K0825 | 1/ea |
