Products
| Item # | Color | Seat Width | Product Overall Height | HCPCS* | UOM | |
|---|---|---|---|---|---|---|
| BTR20-B | Select | Blue | 20″ | 37″ | E1039 | 1/cs |
| BTR20-R | Select | Red | 20″ | 37″ | E1039 | 1/cs |
| BTR22-B | Select | Blue | 22″ | 37″ | E1039 | 1/cs |
| BTR22-R | Select | Red | 22″ | 37″ | E1039 | 1/cs |

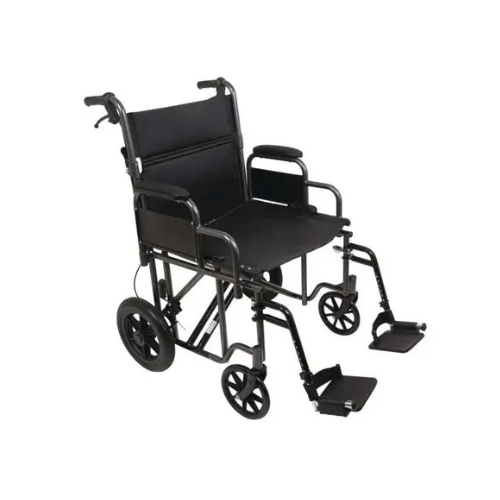

Bariatric Steel Transport Chair
Product Summary
- Supports individuals up to 450 lbs.
- Reinforced steel frame provides added support.
- Dual, reinforced steel cross braces.
- Available in blue or red frames.
- 12″ rear flat free wheels.
- Comes with swing-away footrests.
- Padded armrests provide additional comfort.
- Heavy-duty, nylon reinforced upholstery with a back carry pouch.
- Removable, reversible desk-length arms.
- Companion activated wheel locks.
Specifications
| Overall Width (BTR20) | 24.5″ (open) | 9″ (closed) |
|---|---|
| Overall Width (BTR22) | 26.5″ (open) | 11.5″ (closed) |
| Overall Height | 37″ |
| Seat-To-Floor Height | 19.5″ |
| Back Height | 16″ |
| Seat Dimensions (BTR20) | 20″ (W) x 18″ (D) |
| Seat Dimensions (BTR22) | 22″ (W) x 18″ (D) |
| Overall Length w/Riggings | 38″ |
| Weight (BTR20 | BTR22) | 45 lbs. | 49 lbs. |
| Carton Shipping Weight (BTR20 | BTR22) | 50 lbs. | 54 lbs. |
| Weight Limit | 450 lbs. |
| Warranty: | Limited Lifetime |
Downloads
Owners Manual
Catalog Page
Parts Diagram
Order Now
Parts
| Diagram Number | Part Description | Part Number | |
|---|---|---|---|
| 2 | Select | 20″ Back Upholstery | STDS2KBTR20B |
| 3 | Select | 20″ Seat Upholstery | STDS2KBTR20S |
| 5 | Select | Arm Pad | STDSDSKVB |
| 6 | Select | Arm Assm. Right Blue | STDS2K30RB |
| 6 | Select | Arm Assm. Left Blue | STDS2K30LB |
| 7 | Select | Wheel Lock – Rt. | STDS2K303R |
| 7 | Select | Wheel Lock – Lt. | STDS2K303L |
| 10 | Select | Rear Hub Cap | STDS2K3002 |
| 11 | Select | Rear Axle Bolt | STDS2K3032 |
| 12 | Select | Rear Wheel | STDS2K3000 |
| 13 | Select | Cross Frame | STDS2K3045 |
| 15 | Select | Front Axle Bolt | STDS2K3042 |
| 17 | Select | Front Wheel | STDS2K3009 |
| 20 | Select | Fork Stem Cap | STDS8M4651 |
| 25 | Select | Footrest Set Red | STDS2K305R |
| 25 | Select | Footrest Set Blue | STDS2K305B |
| 27 | Select | Seat Upholstery Scews (8) | STDS1072-8 |
| Select | Back Upholstery Screw | STDS00I07I | |
| Select | Hanger Pin | STDS2K30II | |
| Select | Fork Stem Bearings | STDS3J240I | |
| Select | Rear Wheel Bearings | STDS2K303I | |
| Select | Front Axle Bearings | STDSI0II | |
| Select | Hand Grip | STDS2K3003 | |
| Select | Upholstery Handle | STDS2K30I2 | |
| Select | Footrest Bumper | STDSI026 | |
| Select | Slide Tube | STDS2K30I0 | |
| Select | Tipping Sleeve | STDS2K30I5 |
