3-Position Recliner
Product Summary

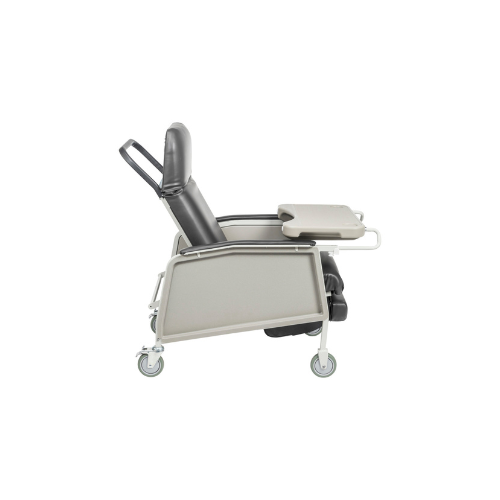

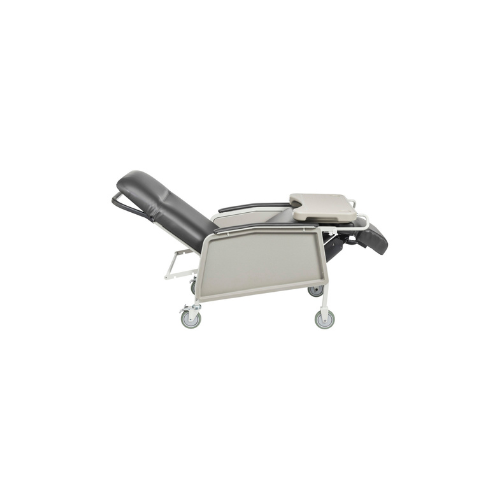

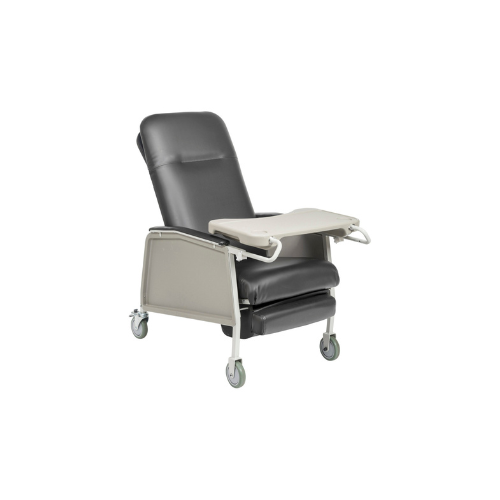

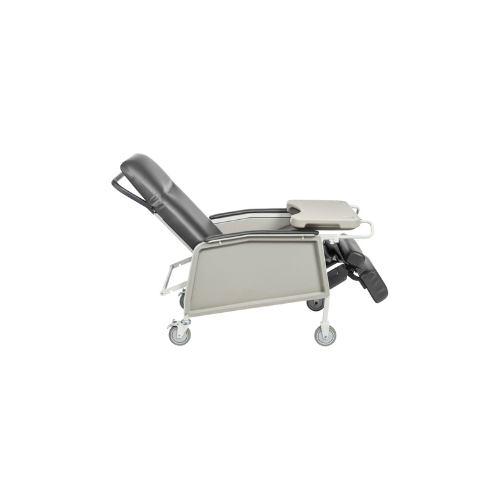

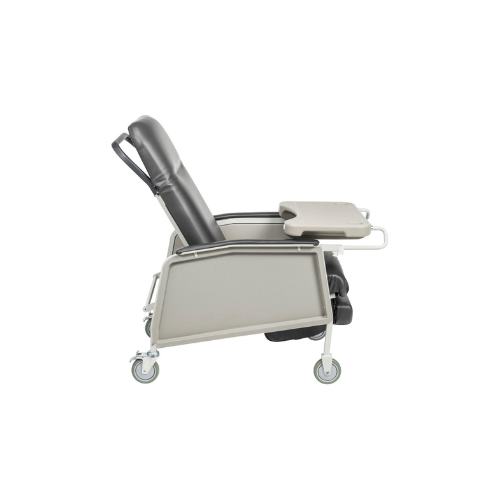

- 3-positions: upright (Figure A), deep recline and elevated leg rest/footrest. (Figure B)
- Retractable lock bar secures the chair in the desired position.
- Self-adjusting suspension in the seat prevents bottoming out.
- Side panels “pop off” for easy cleaning and maintenance.
- Large, blow-molded tray locks in 5 positions and can be stored on the side of the chair.
- 5″ casters (2 with locks) make it easy-to-move and secure the recliner.
- Wide, comfortable armrests are angled to provide support in any reclined position.
- Neutral-colored, sturdy steel frame is easy-to-clean and maintain.
- Moisture barrier on seat prevents seepage.
- Comfortable built-in headrest.Foam and vinyl meet California Technical Bulletin 117 Standard.
Specifications
Specifications
| Overall Dimensions | 47″ (H) X 25″ (W) X 41″ (D) |
|---|---|
| Width | 20″ between arms |
| Seat to Floor Arm Height | 9″ – 26″ |
| Seat Dimensions | 21″ (H) x 19″ (W) x 19″ (D) |
| Carton Shipping Weight | 110 lbs. |
| Weight Limit | 250 lbs. |
| Warranty | Limited Lifetime on Frame, 1 Year on Upholstery and Moving Parts |
Downloads
Downloads
Owners Manual
Catalog Page
Parts Diagram
Products
Parts
Parts
| Diagram Number | Part Description | Part Number | |
|---|---|---|---|
| 1 | Footrest Blue Ridge | D574P-1058BR | |
| 1 | Footrest Jade | D574P-1058J | |
| 1 | Footrest Rose | D574P-1058R | |
| 2 | Legrest Blue Ridge | D574P-1055BR | |
| 2 | Legrest Jade | D574P-1055J | |
| 2 | Legrest Rose | D574P-1055R | |
| 3 | Seat Blue Ridge | D574SEAT-BR | |
| 3 | Seat Jade | D574SEAT-J | |
| 3 | Seat Rose | D574SEAT-R | |
| 4 | Seat with Legrest Blue Ridge | D574P-SEATLEG-BR | |
| 4 | Seat with Legrest Jade | D574P-SEATLEG-J | |
| 4 | Seat with Legrest Rose | D574P-SEATLEG-R | |
| 5 | Back Blue Ridge | D574BACK-BR | |
| 5 | Back Jade | D574BACK-J | |
| 5 | Back Rose | D574BACK-R | |
| 6 | Seat Frame | D574P-1053 | |
| 7 | Headrest Adjuster | D574P-1048 | |
| 8 | Push Handle | D574P-1004 | |
| 9 | Back Lock Bar | D574P-1050 | |
| 10 | Armrest Blue Ridge | D574P-1070BR | |
| 10 | Armrest Jade | D574P-1070J | |
| 10 | Armrest Rose | D574P-1070R | |
| 11 | Side Panels | D574P-1020 | |
| 12 | Rear Caster | D574P-1025B | |
| 13 | Reclining Frame | D574P-1068 | |
| 14 | Front Caster | D574P-1027 | |
| 15 | Tray Table | D574P-1038 | |
| 16 | Table Slide Tube | D574P-1064 | |
| 17 | Table Fitting | D574P-1036 | |
| 18 | Release Button | D574P-BTN | |
| 19 | Table Washer | D574P-1037 | |
| 20 | Reclining Mechanism | D574P-1035 | |
| 21 | Footrest Support Bar & Hdwr | D574P-1060 | |
| 21 | Hardware Only | D574P-1061 | |
| 22 | Protective Panels | D574P-1012 | |
| 23 | Back Release Button | D574-BBN | |
| 23 | Hardware Set | D574P-1003 |
