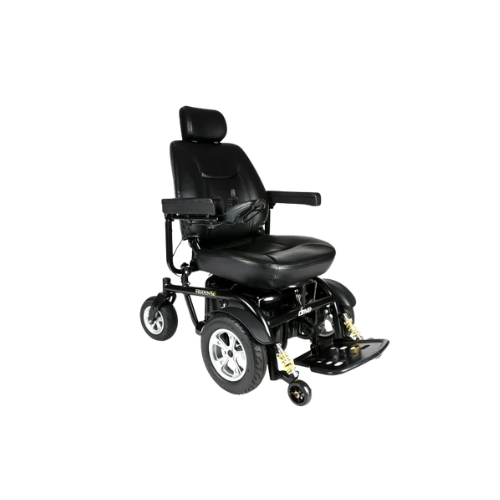

Trident

Description

Shroudless design offers easy access to internal components and batteries.
Semi-reclining seat with adjustable headrest offers three height adjustments and two depth options.
Armrests are padded, adjustable and removable.
Available with 18” or 20” width Captain’s Seat.
Quick-release pins allow easy seat removal.
Adjustable, flip-up footplate includes rubber front bumper to prevent damage.
Positioning belt included.
Seat position can be adjusted forward and backward.
Programmable controller.
Optional swing-away controller arm sold separately.
Optional elevating leg rests sold separately.
Black, flat-free non-marking wheels.
Large, front anti-tip wheels feature suspension for safety, smoother ride and enhanced obstacle handling.
Controller is protected by metal frame.
Easy free-wheel operation.
Slide-out battery tray.

Specifications

HCPCS	KO823
Weight Capacity	300 lbs.
Top Speed	4 mph
Maximum Range	15 miles
Turning Radius	24″
Climbing Angle	7.5°
Ground Clearance	2″
Dimensions	42.25″ (L) x 27.25″ (W)
Floor-to-Seat Height	21″ – 24″
Controller	PG VR2 50A
Motors (2)	24V x 320W x 4600 rpm
Batteries (pair)	12V x 36AH (U1)
Charger	4A Offboard
Brakes	Electromagnetic
Caster Wheels	8″ x 2″ Solid
Drive Wheels	14″ x 3″ Flat-free
Base Weight	82 lbs.
Battery Weight (pair)	53 lbs.
Seat Weight	51 lbs.
Total Weight	186 lbs.
Seat Dimensions	18” (W) x 18” (D) \| 20” (W) x 18” (D)
Warranty of Frame	Lifetime
Warranty on Electronic Controller/Drive Train Components	14 Months
Warranty on Batteries	6 months

Downloads

Products

Item #		Seat	HCPCS*	UOM
2850-18	Select Trident 18 Front Wheel Power Chair,1/ea	18″ Captain’s Seat	K0823	1/cs
2850-20	Select Trident 20 Front Wheel Power Chair,1/ea	20″ Captain’s Seat	K0823	1/cs
