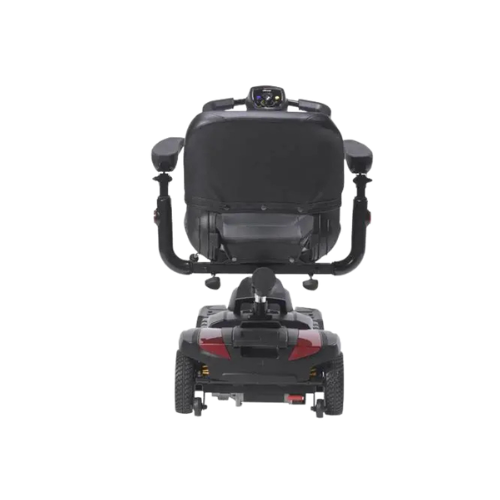

Scout DST 4-Wheel

Product Summary

Dynamic Suspension Technology (DST) features front and rear suspension coils for the most comfortable ride on all terrain. (Figure E)
Charge port located on the control panel and battery pack for easy charging.
Headlight
Interchangeable color panels in red and blue.
Quick & easy disassembly.
Armrests are padded, contoured, width and angle adjustable. (Figure G)
Delta tiller with ergonomic throttle control. (Figure F)
Armrest covers with reflectors. (Figure G)
Large plastic basket with carry handle.
Height adjustable swivel seat with fold down backrest.
Anti-tip wheels.

Please visit the store for more information or call us at: (905) 828-1980

Description

Please visit the store for more information or call us at: (905) 828-1980

Specifications

Weight Capacity	325 lbs.
Top Speed	4.25 mph
Estimated Range	15 miles
Max Climbing Angle	6°
Turning Radius	55″
Ground Clearance	2.5″
Dimensions	42.5″ (L) x 21.25″ (W) x 36″ (H)
Seat Dimensions	17.5″ (W) x 16″ (D)
Back Height	14″
Controller	CURTIS 45A
Motor	270W x 4700RPM
Batteries	20AH
Charger	2A
Brakes	Electromagnetic
Freewheel Mode	Yes
Front Wheels	8″ x 2″
Rear Wheels	8″ x 2″
Anti-Tip Wheels	2″ x ¾”
Base Weight	70 lbs.
Battery Weight (Pair)	30 lbs. (20 AH)
Seat Weight	23 lbs.
Heaviest Piece Weight	Front Section: 43 lbs.
Total Weight	123 lbs.
Warranty on Frame	Limited Lifetime
Warranty on Electronics, Controller, Drive-Train Components	14 months
Warranty on Batteries	6 months

Downloads

Catalog Page

Parts Diagram

Products

Item #		Seat	Battery	HCPCS*	UOM
SCOUTDST4	Select Scout DST 4-Wheel Travel Scooter	17.5″ Folding Seat	20AH		1/ea

Parts

	Part Description	Part Number
Select	Speed Dial Knob	LRM412103-11
Select	Speed Dial	BC31001
Select	Throttle Assy.	BC31009N
Select	Battery Gauge (8 LEDs)	C11-076-00100
Select	Horn Button	SC31034
Select		c12-050-00501
Select		c16-069-00400
Select		c18-069-00101
Select	Key	BCKEY
Select	Charger Port	C18-071-00800
Select		c08-069-00101
Select		c08-069-06600
Select		C08-069-06100
Select	Footrest Shroud	SC31024
Select	Battery Box Shroud	SC31027
Select		c08-069-05500
Select		C01-069-01701
Select		C01-069-01801
Select		c02-069-00100
Select		C08-069-06500
Select	Handgrip Plastic	SC31054
Select	Basket Bracket	BC35051
Select		C02-069-00601
Select		12AH-SC31007
Select		12AH-SC31006
Select		20AH-SC31050
Select		20AH-SC31051
Select	20 Amp Circuit Breaker	BC20ACB
Select	Charger Socket & Harness	SC31031
Select		C12-060-00300
Select	12ah Battery (need 2)	LRM402109
Select	Battery (order 2)	LRM412123
Select		965306002
Select		C06-060-00200
Select		DST-005
Select	Hub Cap	SC31025
Select		DST-013
Select		C07-069-00201
Select		C07-028-00404
Select		C07-028-00504
Select		DST-016
Select	Armrest Knob	S31052
Select	Left Arm Pad Capt. Seat	VENT-31
Select	Right Arm Pad Capt. Seat	VENT-32
Select	Battery Box Hold Down	SC31047
Select		SC31052-4
Select		S09-069-00100
Select	Transaxle	BC350112
Select		C09-069-00102
Select		C09-069-00201
Select	Motor to Transaxle Coupler	C09-069-00300
Select		DST-008
Select		C13-069-00100
Select		DST-010
Select		C03-075-01000
Select		C04-075-00200
Select		C01-069-01901
Select	Tiller Lock	C08-069-01000
Select	Anti-Tip Wheel	S31026
Select		C08-069-05800
Select		DST-012
Select		DST-004R
Select		DST-004B
Select	Front Bumper	C08-069-04800
Select		C03-075-00600
Select		DST-011
Select		C03-075-00301
Select		C03-075-00401
Select		C03-075-00703
Select		C05-060-00300
Select		DST-009
Select	Basket	S35003-P
Select	Motor Wire Harness	SC31020
Select	Connection Block Set	SC31033
