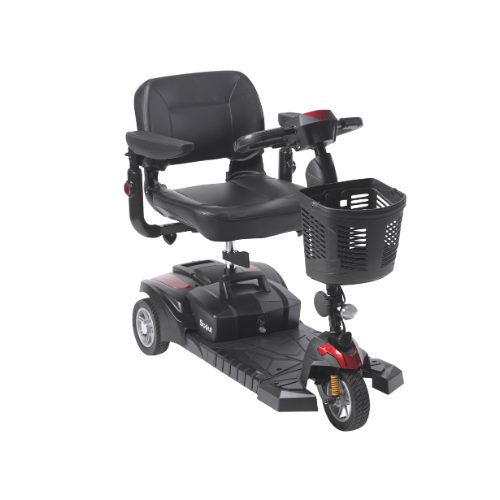

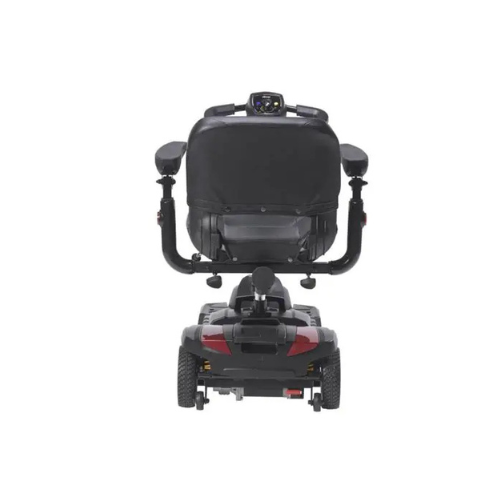

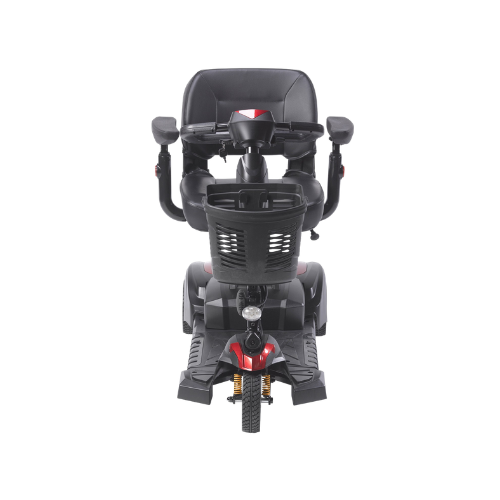

Scout DST 3-Wheel

Dynamic Suspension Technology (DST) features front and rear suspension coils for the most comfortable ride on all terrain. (Figure D)
Charge port located on the control panel and battery pack for easy charging.
Headlight
Interchangeable color panels in red and blue.
Quick & easy disassembly.
Armrests are padded, contoured, width and angle adjustable. (Figure F)
Delta tiller with ergonomic throttle control. (Figure E)
Armrest covers with reflectors.
Large plastic basket with carry handle.
Height adjustable swivel seat with fold down backrest.
Anti-tip wheels.
Extended footboard provides ample space for taller users. (Figure C)

Category: POWER MOBILITY Tag: POWER MOBILITY

Description

Specifications

Weight Capacity	325 lbs.
Top Speed	4.25 mph
Estimated Range	15 miles
Max Climbing Angle	6°
Turning Radius	45″
Ground Clearance	2.5″
Dimensions	42.5″ (L) x 21.25″ (W) x 36″ (H)
Seat Dimensions	17.5″ (W) x 16″ (D)
Back Height	14″
Controller	CURTIS 45A
Motor	270W x 4700RPM
Batteries	20AH
Charger	2A
Brakes	Electromagnetic
Freewheel Mode	Yes
Front Wheels	8″ x 2″
Rear Wheels	8″ x 2″
Anti-Tip Wheels	2″ x ¾”
Base Weight	60 lbs.
Battery Weight (Pair)	30 lbs. (20 AH)
Seat Weight	23 lbs
Heaviest Piece Weight	Front Section: 34 lbs.
Total Weight	113 lbs.
Warranty on Frame	Limited Lifetime
Warranty on Electronics, Controller, Drive-Train Components	14 months
Warranty on Batteries	6 months
