Clever-Lite Walker, Junior, with 5″ Casters
Product Summary
- Front wheels can be set in either “swivel” (Figure A) or “fixed” (Figure B) position.
- Special loop lock made of internal aluminum casting operates easily and ensures safety.
- Sturdy 1″ diameter anodized aluminum construction.

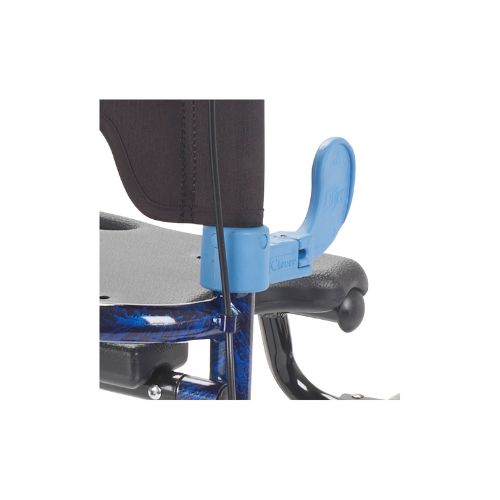

- Comes with flip-up seat with built-in carry handle.
- Allows individual to be seated or use as traditional walker by raising seat to step inside the frame.
- Patented dual-lever side-paddle release.
Specifications
Specifications
| Width | 18.5″ inside hand grip | 19.5″ inside back legs | 25″ Overall |
|---|---|
| Depth | 22.75″ opened at base |
| Seat Dimensions | 19″ (W) x 11.25″ (D) |
| Seat Height | 17.75″ – 21.75″ |
| Handle Height | 29.5″ – 33.5″ |
| Weight | 14 lbs. |
| Carton Shipping Weight | 17 lbs. |
| Weight Limit | 300 lbs. |
| Warranty | Limited Lifetime |
Downloads
Downloads
Owners Manual
Catalog Page
Parts Diagram
Order Now
Order Now
[gravityform id=”1″ title=”true” description=”true”]
Parts
Parts
Parts for 10230J
| Diagram Number | Part Description | Part Number | |
|---|---|---|---|
| 3 | Wheel Lock Rt. | 10230BR | |
| 3 | Wheel Lock Lt. | 10230BL | |
| 4 | Rear Wheel | 10230WO | |
| 5 | Front Swivel Wheel | 10230W | |
| 7 | Cable | 950340129901 | |

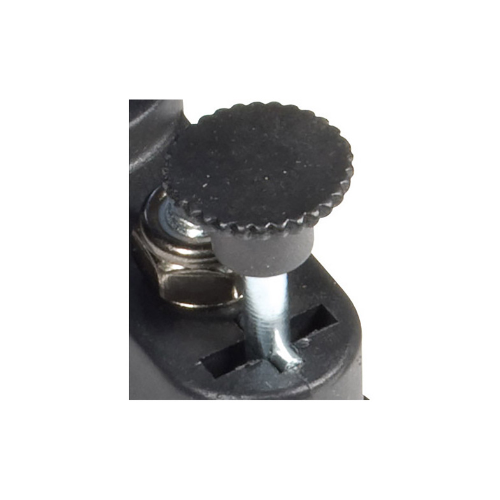

| 8 | Adjustment Button | 12002PB | |
| 9 | Anti-Rattler | 950300169901 | |
| Seat | 10243CPA |
