Deluxe, Tilt-Top Overbed Table
$154.14
Product Summary
- Easily assembled.
- Walnut, wood grain low-pressure laminate top.

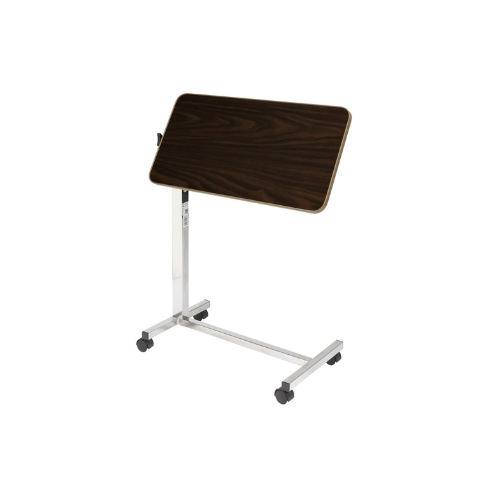

- Top can be tilted 33° in either direction. (Figure A)
- Top can be raised or lowered in infinite settings between 29.5″- 46″.
- Swivel casters allow for easy maneuverability.
- Chrome-plated steel “H” base provides security and stability.
- Tabletop locks securely when height adjustment handle is released. It can be raised with the slightest upward pressure.
- For proper assembly, do not remove bottom screw. (Figure B)
Specifications
Specifications
| Height Adjustable | 29.5″ – 46″ |
|---|---|
| Weight | 21 lbs. |
| Carton Shipping Weight | 23 lbs. |
| Weight Limit | 50 lbs. |
| Base Dimensions | 15.5″ (D) x 26.5″ (W) |
| Tabletop Surface Dimensions | 15″ (D) x 30″ (W) |
| Warranty | Limited Lifetime |
Downloads
Downloads
Owners Manual
Catalog Page
Parts Diagram
Products
Products
| Item # | HCPCS* | UOM | |
|---|---|---|---|
| 13008 | Select | E0274 | 1/cs |
Parts
Parts
| Diagram Number | Part Description | Part Number | |
|---|---|---|---|
| 1 | Hardware | 13008H | |
| 2 | Caster Locking | 13007CL | |
| 3 | Base | 13008HB | |
| 4 | Caster Non-Locking | 13007C | |
| 5 | Adjusting Mast | 13008AM | |
| 6 | Plastic Bushing | 13008B | |
| 7 | Adjustment Knob | 13008K | |
| 8 | Adjustment Bolt Bushing | 13008AB | |
| 9 | Elevating Lever | 13008EL | |
| 10 | Adjustment Bolt | 13008AAB | |
| 11 | Table Top | 13008-T | |
| 12 | Top Mounting Bracket | 13008TB |
Accessories
Accessories
| Item # | Description | UOM |
|---|---|---|
| 13003NCL | Caster for Overbed Table, with Lock | 1/ea |
| 13003NC | Caster for Overbed Table, without Lock | 1/ea |
