Delta™ Ultra-Light 1000, Full-Electric Bed

Category: Tag:

Description

  • The Delta 1000 is truly universal because the bed frame can be used with Drive’s and most other manufacturers’ bed ends, old and new.
  • The transition box mounted on the foot section is key to interchangeability. (Figure A)
  • The transition box allows you to change the rotation of the high/low shaft.
  • Headboard is taller than footboard to better fit home decor. (Figure B)
  • The wood grain panels are break and scratch resistant.
  • Foot section weighs 50% less than conventional foot sections to make deliveries safe and easy.
  • Once installed, the high/low shaft will stay with the bed to eliminate loss or forgetting on future installations. (Figure C)
  • Labels and color-coded springs assure accurate installation of side rails for patient safety. (Figure D)
  • Unique motor is completely self-contained to reduce weight and noise.
  • The motor assembly can be installed and removed with patient in bed.
  • Bed, side rails and mattress safety-tested by SGS, a nationally recognized testing facility. Satisfies all applicable FDA entrapment guidelines.
  • The motor is UL approved.
  • In the event of a power failure, a 9 volt battery, located in the hand control, can lower the head and foot sections nine times. No crank needed.
  • New and improved hand pendant has large, easy-to-use controls. (Figure E)
  • Bed ships in two cartons.
  • Channel frame construction provides superior strength and reduced weight.
  • Zinc-coated spring deck.
  • Extension kit available (model #15030EXTKIT) extends length from 80″ to 84″.
  • Patent Pending.
  • Weight Capacity 450 lbs.

Specifications

Bed Height Minimum Without Casters 12.75″
Bed Height Maximum With Casters 24″
Unit Dimensions 36″ (W) x 88″ (L)
Weight 169 lbs.
Carton Shipping Weight 182 lbs.
Weight Limit 450 lbs Maximum weight limit includes weight of occupant, all accessories such as mattress, side/assist rails, trapeze, any personal affects, etc.
Warranty (Original Purchaser) 5 Years on Motor and Hand Control, Limited Lifetime on Welds and Frame, 1 Year on All Other Parts and Components

Downloads

Owners-Manual

Owners Manual

Catalog-Page

Catalog Page

image-flat

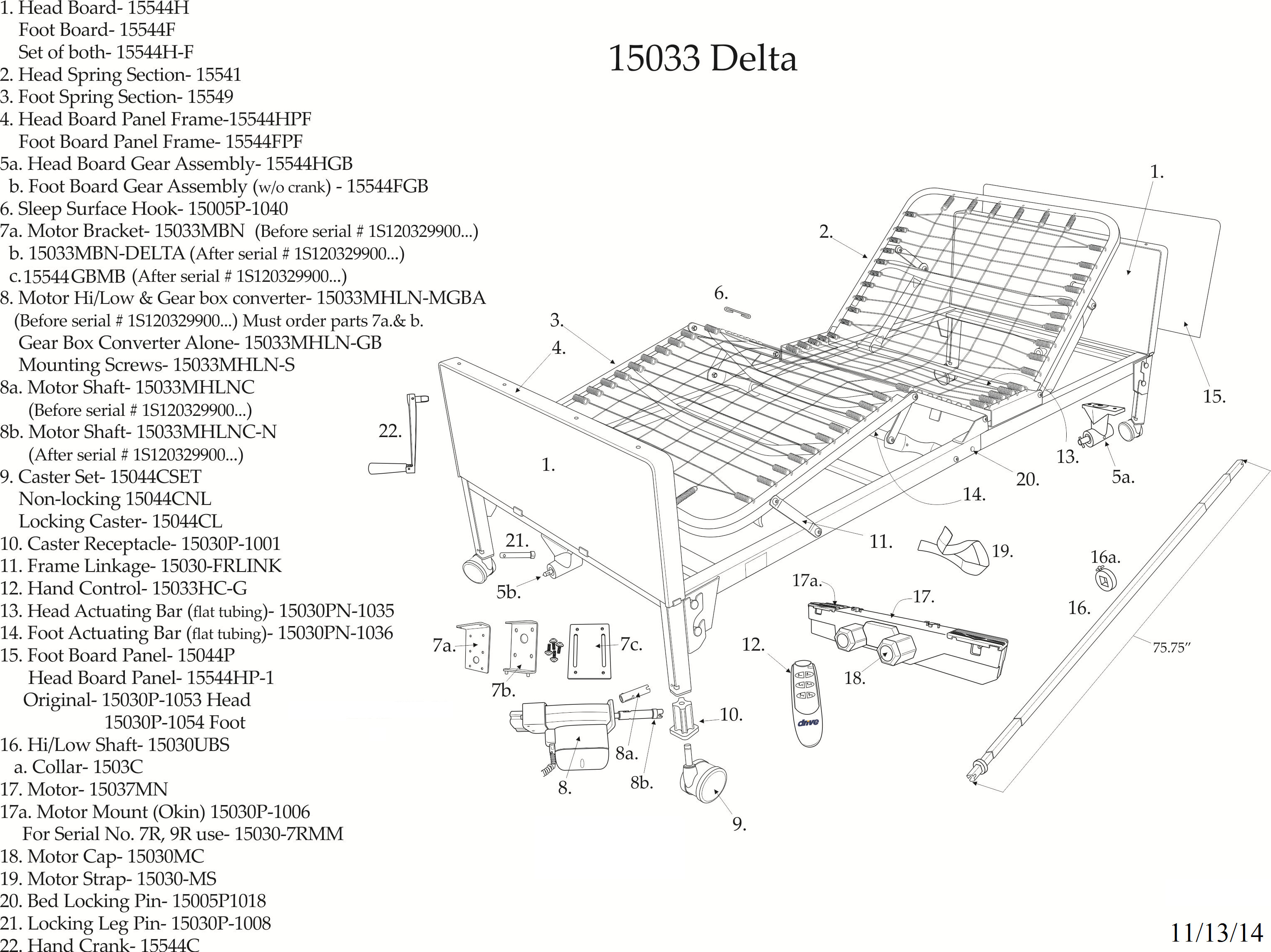

Parts Diagram

Products

Item # Product Description HCPCS* UOM
15033 Select

Ultra-Light Full-Electric Bed E0266 1/cs
15033-220 Select

Ultra-Light Full-Electric Bed, 220 V E0297 1/cs
15033BV-FR Select

Ultra-Light Full-Electric Bed with Full-Length Side Rails (item #15001ABV) E0266 1/cs
15033BV-HR Select

Ultra-Light Full-Electric Bed with Half Rails (item #15201BV) E0266 1/cs
15033BV-PKG Select

Ultra-Light Full-Electric Bed with Full-Length Side Rails (item #15001ABV) and 80″ Innerspring Mattress (item #15006) E0265 1/cs
15033BV-PKG-T Select

Ultra-Light Full-Electric Bed with Full-Length Side Rails (item #15001ABV) and 80″ Therapeutic Support Mattress (item #15019) E0265 1/cs
15033BV-PKG-1 Select

Ultra-Light Full-Electric Bed with Half Rails (item #15201BV) and 80″ Innerspring Mattress (item #15006) E0265 1/cs
15033BV-PKG-1-T Select

Ultra-Light Full-Electric Bed with Half Rails (item #15201BV) and 80″ Therapeutic Support Mattress (item #15019) E0265 1/cs
15033BV-PKG-2 Select

Ultra-Light Full-Electric Bed with Full-Length Side Rails (item #15001ABV) and 80″ Foam Mattress (item #15007) E0265 1/cs

Parts

Diagram Number Part Description Part Number
1 Select Head Board 15544H
1 Select Foot Board 15544F
1 Select Set of both 15544H-F
2 Select Head Spring Section 15541
3 Select Foot Spring Section 15549
4 Select Head Board Panel Frame 15544HPF
4 Select Foot Board Panel Frame 15544FPF
5a Select Head Board Gear Assembly 15544HGB
5b Select Foot Board Gear Assembly (w/o crank) 15544FGB
6 Select Sleep surface hook 15005P-1040
7a Select Motor Bracket (Before serial # 1S120329900…) 15033MBN
7b Select (After serial # 1S120329900…) 15033MBN-DELTA
7c Select (After serial # 1S120329900…) 15544GBMB
8 Select Motor Hi/Low & Gear box converter * Must order parts 7b & 7c (After serial # 1S120329900…) 15033MHLN-MGBA
8 Select Gear Box Converter Alone * Must order parts 7b & 7c 15033MHLN-GB
8 Select Mounting Screws 15033MHLN-S
8b Select Motor Shaft (After serial # 1S120329900…) 15033MHLNC-N
9 Select Caster Set 15044CSET
9 Select Caster without lock 15044CNL
9 Select Caster with lock 15044CL
10 Select Caster Receptacle 15030P-1001
11 Select Frame Linkage 15030-FRLINK
12 Select Hand Control 15033HC-G
13 Select Head Actuating Bar 15030PN-1035
14 Select Foot Actuating Bar 15030PN-1036
15 Select Foot Board Panel 15044P
15 Select Head Board Panel 15544HP-1
16a Select Collar 1503C
17 Select Motor 15037MN
17a Select Motor Mount (Okin) 15030P-1006
17a Select For Serial No. 7R, 9R use 15030-7RMM
18 Select Motor Cap 15030MC
19 Select Motor Strap 15030-MS
20 Select Bed Locking Pin 15005P1018
21 Select Locking Leg Pin 15030P-1008
22 Select Hand Crank 15544C
Select Hi/Low Shaft 1503UBS
