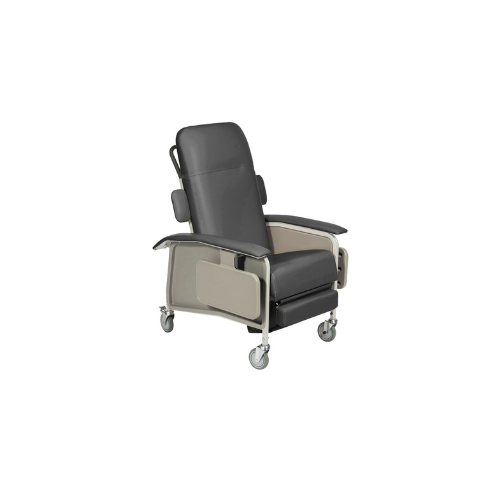

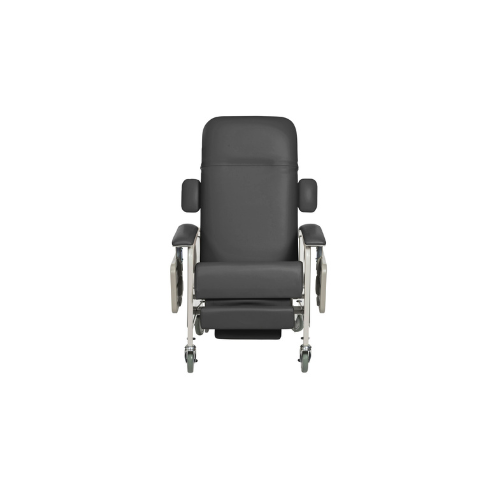

Clinical Care Recliner
Description
- Ideal for use in dialysis, blood collection, respiratory and cardiac care.

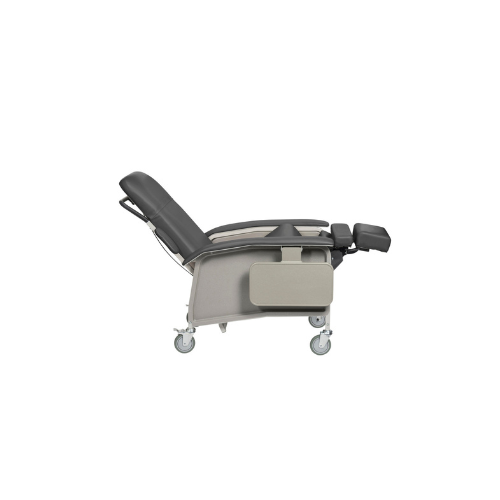

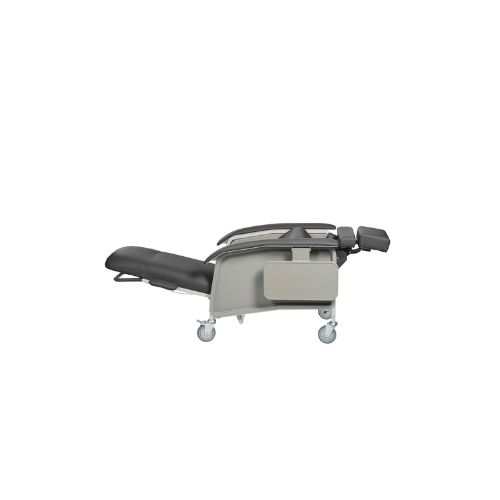

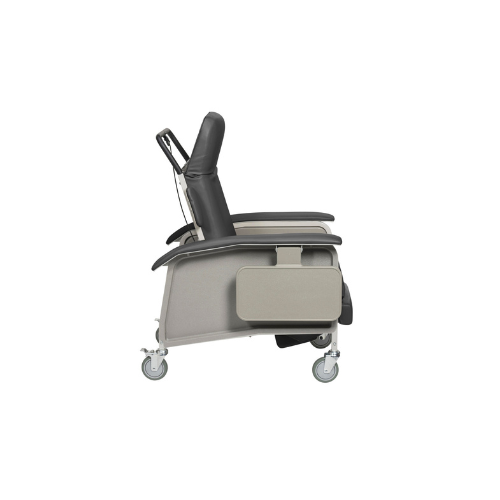

- Chair can be positioned in 4 positions—upright (Figure A), TV (Figure B), Full Recline (Figure C) and Trendelenburg.
- Deep recline and Trendelenburg position can only be attained by an attendant.
- Gas cylinder controls deep recline and Trendelenburg position.
- Side panels “pop-off” for easy cleaning and maintenance.
- Large, blow-molded side trays includes recess for cup.
- 5″ Casters (2 with locks) make it easy-to-move and secure recliner.
- Gas cylinder release handle for quick back release. Release handle can be operated from either side of the recliner.
- Wide, comfortable armrests are angled to provide support in any reclined position.
- Upholstered arm supports provide extra comfort in recline position.
- Neutral-colored, sturdy steel frame is easy to clean and maintain.
- Comfortable built-in headrest.
- Foam and vinyl meet California Technical Bulletin 117 Standard.
Specifications
Specifications
| Overall Dimensions | 47.5″ (H) x 30.5″ (W) x 38″ (D) |
|---|---|
| Width Between Arms | 22″ |
| Floor to Seat Height | 26.5″ |
| Seat Dimensions | 21.5″ (H) X 21.5″ (W) X 20″ (D) |
| Product Weight | 115 lbs. |
| Carton Shipping Weight | 135 lbs. |
| Weight Limit | 250 lbs. |
| Warranty | Limited Lifetime on Frame, 1 Year on Upholstery and Moving Parts |
Downloads
Downloads
Owners Manual
Catalog Page
Parts Diagram
Products
Products
| Item # | Color | HCPCS* | UOM | |
|---|---|---|---|---|
| D577-R | Select | Rosewood | 1/cs | |
| D577-J | Select | Jade | 1/cs | |
| D577-BR | Select | Blue Ridge | 1/cs |
Parts
Parts
| Diagram Number | Part Description | Part Number | |
|---|---|---|---|
| 1 | Select | Lower Push Handle | D577P-1003 |
| 2 | Select | Side Wing Bracket | D577P-1002 |
| 3 | Select | Recliner Cable | D577P-1001 |
| 4 | Select | Side Wing Plastic Backing | D577P-1000 |
| 6 | Select | Recliner Release Handle | D577P-1005 |
| 7 | Select | Upper Push Handle | D577P-1060 |
| 8 | Select | Headrest Adi. Bracket | D574-1048 |
| 9 | Select | Back Blue Ridge | D577BACK-BR |
| 9 | Select | Back Jade | D577BACK-J |
| 9 | Select | Back Rose | D577BACK-R |
| 10 | Select | Seat with Legrest Blue Ridge | D577SEAT-BR |
| 10 | Select | Seat with Legrest Jade | D577SEAT-J |
| 10 | Select | Seat with Legrest Rose | D577SEAT-R |
| 11 | Select | Footrest Blue Ridge | D577P-1010BR |
| 11 | Select | Footrest Jade | D577P-1010J |
| 11 | Select | Footrest Rose | D577P-1010R |
| 13 | Select | Reclining Mechanism | D574P-1035 |
| 14 | Select | Protecting Panel | D577P-1012 |
| 15 | Select | Seat Frame | D577P-1013 |
| 16 | Select | Frame Hinge washer & Pin Pair | D577P-1014 |
| 17 | Select | Side Panels | D577P-1075 |
| 18 | Select | Front Caster | D577P-1026 |
| 19 | Select | Rear Caster | D574P-1025B |
| 20 | Select | Main Frame | D577P-1017 |
| 21 | Select | Armrest Blue Ridge | D577P-1018BR |
| 21 | Select | Armrest Jade | D577P-1018J |
| 21 | Select | Armrest Rose | D577P -1018R |
| 22a | Select | Tray Bolt | D577P-1019 |
| 23 | Select | Tray Base | D577P-1020 |
| 24 | Select | Tray | D577P-1065 |
| 25 | Select | Reclining Piston Release Mount | D577P-1022 |
| 26 | Select | Recling Piston | D577P-1050 |
| 26 | Select | Hardware | D577P-1058 |
