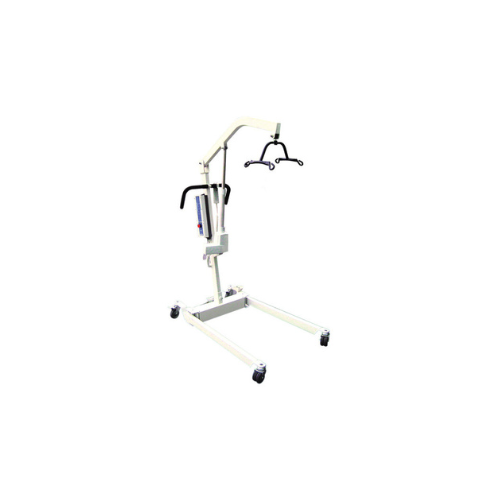

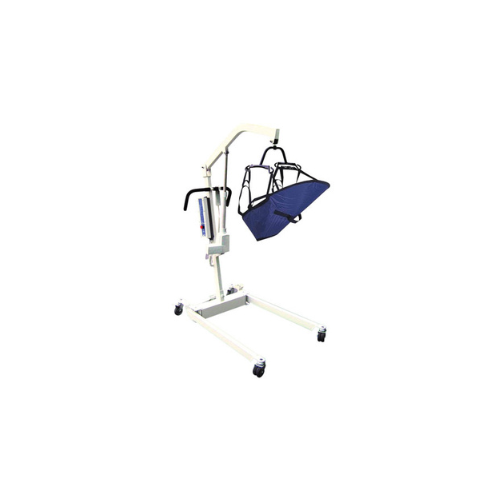

Bariatric Lift,Elect,Homecare Style
$3,254.84
Product Summary
- To charge, simply plug in unit. Battery does not need to be removed to be charged. Lift will not operate while plugged in. Ideal for home-care use.
- Jumbo actuator pump with emergency button can switch to manual mode to lower patient down safely.
- Base legs adjust easily and lock securely into open position with padded shifter handle.
- Extra wide coated cradle with 360° rotation with 4-point hook up. (Can fit under bed)
- Weight Capacity 600 lbs.
Specifications
Specifications
| Boom Height | 32″ – 75.5″ |
|---|---|
| Base Width | 45.75″ (Open) | 25″ (Closed) |
| Base Height | 4.5″ |
| Base Clearance | 2″ |
| Casters | 3″ Front | 4″ Rear |
| Weight | 132 lbs. |
| Carton Shipping Weight | 148 lbs. |
| Weight Limit | 600 lbs. |
| Warranty | Lifetime on frame |
| Warranty | 1 year on components and electrical parts |
Downloads
Downloads
Owners Manual
Catalog Page
Parts Diagram
Products
Products
| Item # | HCPCS* | UOM |
|---|---|---|
| 13244 | E0635 | 1/cs |
Parts
Parts
| Diagram Number | Part Description | Part Number | |
|---|---|---|---|
| 1 | Frame Plug | 13240FP | |
| 2 | Caradle Attachment Bolt | 13244CAB | |
| 3 | Upper Mast | 13244MU | |
| 4 | Mast Hinge Bolt | 13244MHB | |
| 5 | Upper Actuator Bolt | 13244UBA | |
| 6 | Cradle | 13053 | |
| 6 | Pivot Bolt | 13053PB | |
| 7 | Push Handle | 13244PH | |
| 8 | Battery Pack | 13240BATT | |
| 8 | Battery Cell * *Need to order 2 each | 13240BC | |
| 9 | Charger | 13240C | |
| 9 | External Charger | 13255 | |
| 10 | Actuator | 13240A | |
| 11 | Hand Control | 13240HC | |
| 12 | Spreader Bar | 13244SB | |
| 12 | Spreader Bar Handle | 13240SBH | |
| 13 | Base Actuating Rod | 13244BAR | |
| 14 | Caster with Lock | 13244CAL | |
| 15 | Lower Mast | 13244ML | |
| 16 | Caster Position | 13244CPL | |
| 17 | Caster without Lock | 13240CA | |
| 18 | Base | 13244B | |
| 19 | Power Cord for 13240 charger | 13240PC | |
| 19 | Power Cord for 13255 external charger | 13255PC | |
| 20 | Receiver Plate assy. | 13244RPA | |
| 21 | Receiver Plate Bolt | 13240ARB | |
| 21 | Ser # 4A1206 & Later | 13240ARB-N | |
| 22 | Spreader Locking Plate | 13240AP |
