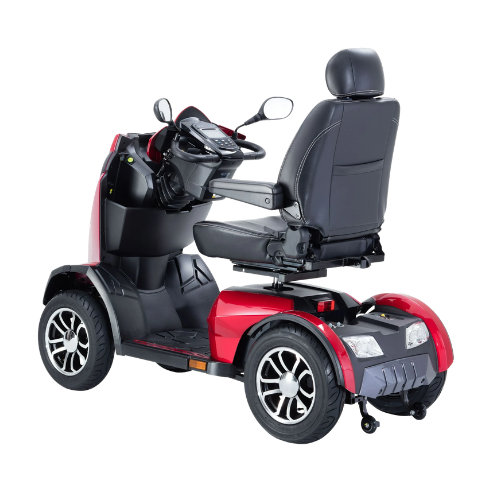

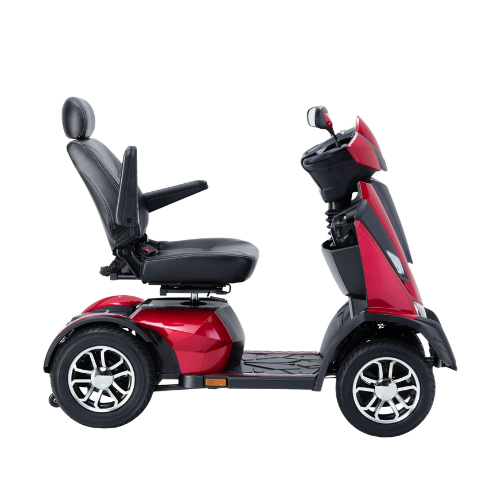

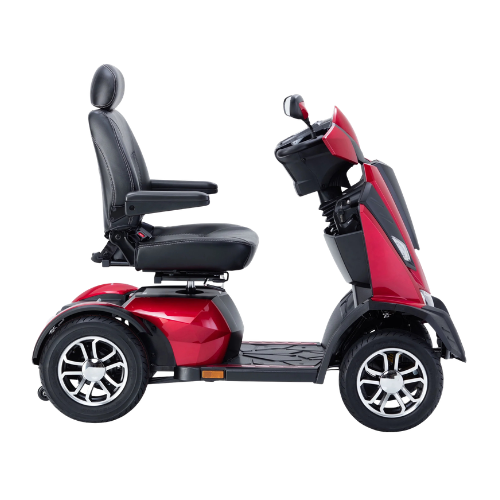

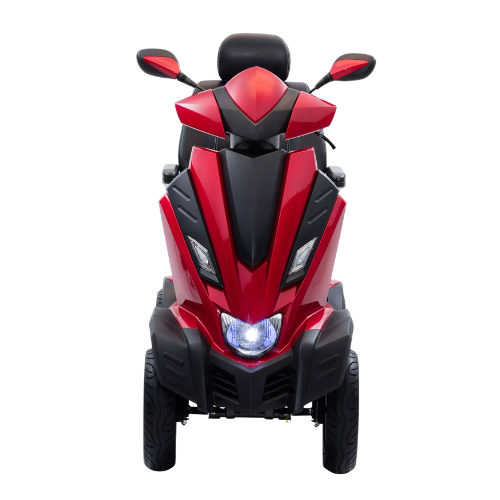

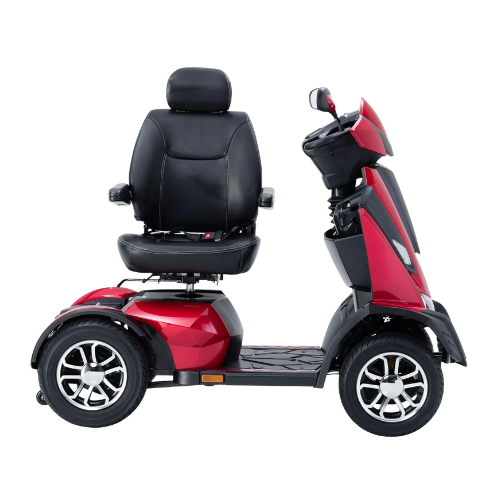

King Cobra

King Cobra

New, innovative design for a distinctive, stylish appearance.
One-touch, infinite tiller adjustment allows the user to easily position the tiller into the ideal driving position.
Ergonomic delta control handles makes it easier for users with limited strength and dexterity to operate the scooter. (Figure E)
Built-in USB port for charging your mobile devices.
Built-in cup holder to conveniently carry your drinks. (Figure A)
Large, air-filled, low profile tires and full suspension for the smoothest outdoor ride quality. (Figure C)
Blade-style alloy rims. (Figure D)
Efficient, extra bright LED lighting.
22″ Wide Full-size, Sport Style, Captain Seat.
Sport Style Captain Seat is height adjustable, swivels and features a fold-down, reclining backrest.
Padded armrests feature easy turn cylinder for angle adjustment.
Easy, free wheel mode. (Figure B)

Specifications

Weight Capacity	450 lbs.
Top Speed	11 mph
Maximum Range	35 miles
Turning Radius	83″
Climbing Angle	8°
Ground Clearance	4″
Dimensions	67″ (L) x 28.8″ (W)
Floor-to-Seat Height	27″ – 30″
Seat Type	Sport Style Captain’s
Seat Dimensions	22″ (W) x 20″ (D)
Controller	Dynamic Rhino II 180A
Motor	24V x 1300W
Batteries	(pair) 12V x 75AH
Charger	8A Offboard
Brakes	Electromagnetic & Hand
Front Wheels	16″ x 4″
Rear Wheels	17″ x 4″
Color	Vivid Red
Base Weight	209 lbs.
Battery Weight (pair)	94 lbs.
Seat Weight	60 lbs.
Total Weight	363 lbs.
Warranty on Frame	Limited Lifetime
Warranty on Electronic Controller/Drive Train Components	24 Months
Warranty on Batteries	12 Months
