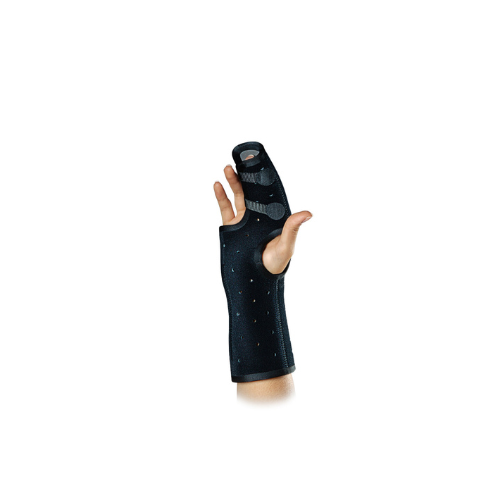

Radial Gutter Fracture Brace

Product Description

Used to stabilize fractures to the 2nd and/or 3rd metacarpal (MC) bones and the respective metacarpal-phalangeal (MCP) joints of the hand. This pre-fabricated, custom-molded orthoses is designed to provide superior fit and support compared to plaster, fiberglass, or pre-made braces. The radial gutter portion of the RGFB allows the caregiver to achieve greater than 70° of flexion at the MCP joints of the 2nd and 3rd digits. Not made with natural rubber latex.

PDAC Assigned Code: PDAC LETTER- 37504112-CODING VERIFICATION-

FEATURES & BENEFITS

  • The ability to thermoform and custom fit the Brace to the patient’s extremity ensures a comfortable fit.
  • Full hook-and-loop release ribbon allows for easier and more comfortable application, removal and reapplication of the brace.
  • Dorsal hook-and-loop secure tab allows the practitioner to secure the over-lapping (top) portion of brace to better manage brace stability.
  • Hook-and-loop straps across the web space and around the 2nd and 3rd digits can be attached anywhere to the surface of the brace for better stability and greater comfort.
  • Finger section can be trimmed (as directed by the physician)to accommodate desired range of motion.
  • BOA Closure System allows for quick adjustment in circumferential compression.

SPECIFICATIONS

Ordering Information

Left Right Size
326-31-1111 326-32-1111 XSmall
326-41-1111 326-42-1111 Small
326-51-1111 326-52-1111 Medium
326-61-1111 326-62-1111 Large
326-71-1111 326-72-1111 XLarge

Sizing

Size Circumference Length
1 XS 7¼” – < 8″ 11½”
S 8″ – < 9″ 12¼”
M 9″ – < 10″ 13½”
L 10″ – < 11″ 14¾”
XL 11″ 15¼”
Name Part # Price
Exos Sizing Tape 00-9324 NA

ACCESSORIES

Wrist Undersleeve

Comfortable elastic wrist undersleeve for use with Exos and other upper extremity braces. Enhances comfort and protects skin from shear and moisture.

Part # Size
896-40-1111 XSmall / Small
896-50-1111 Medium
896-60-1111 Large / XLarge

Boa Locking Ring Kit

Part # Qnty.
800-LR 1 each

Edge Tape

Part # (10 Pack) Length
800-1111 EDGE TAPE – UBL – BLACK 1” X 24”

Exos Sizing Tape

Part # Qty.
00-9324  1

EDUCATION

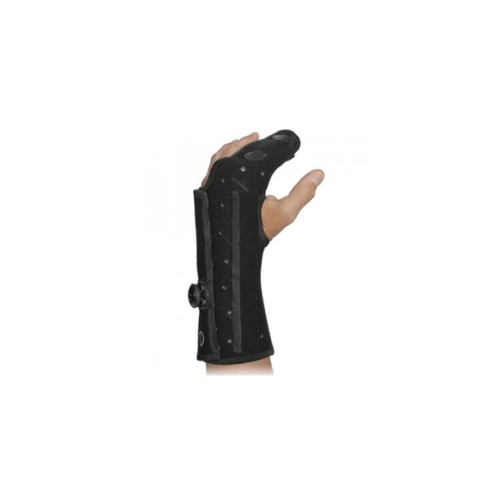

Operating Boa® Lacing System

To Loosen:

  • Lift Boa® Knob. (Figure 1)
  • Pull Tab. (Figure 2)
  • Pull hook-and-loop Full Release Ribbon – to open fully.

To Close and Tighten:

  • Push Boa® Knob down. (Figure 3)
  • Turn Boa® Knob clockwise. (Figure 3)
  • Boa® Knob must be in the down locked position when wearing brace.

2

Three Keys to Success with Exos

  1. Not Too Tight – Wear it Right and leave some “WIGGLE ROOM”
  2. If the brace and skin get wet, they “CAN’T STAY WET”
  3. Keep your “SKIN AND BRACE CLEAN AND DRY”

Please download the 1580_Exos_Patient_Instruction_Sheet document for the full document on how to care for your Exos.
