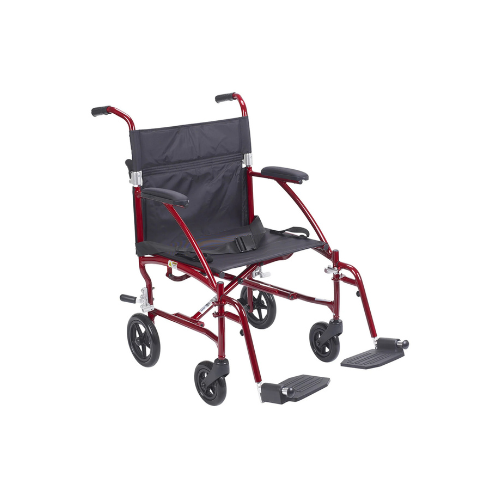

Fly-Lite Aluminum Transport Chair
$238.92
Product Summary
- Weighs only 16.2 lbs. without footrests; 18.9 lbs. with footrests.
- Aluminum frame is lightweight and strong.
- Comes with carry pocket on backrest.
- Comes with seat belt for added safety.
- Attractive plaid style nylon upholstery. (Figure A)
- Comes with handy carry pocket on back. (Figure B)
- Tool-free, height-adjustable swing-away footrests come standard. Optional leg rests available. (Model# STDELR-TF)
- 8″ rear wheel. 6″ casters in front.

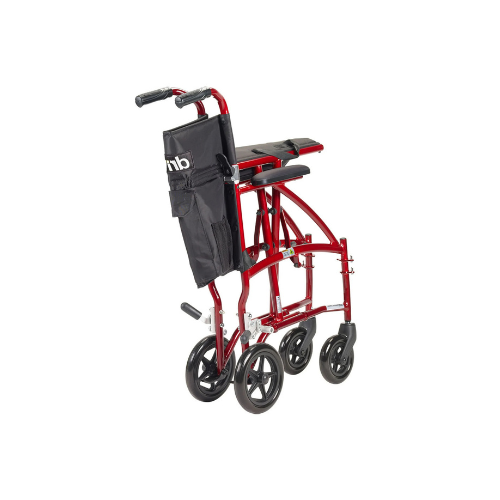

- Back folds down for storage and transport and features deluxe back release. (Figure C)
- Comes with aluminum rear wheel locks.
- Convenient cup holder can easily attach to chair. Sold separately. (Model# STDS1040S) (Figure D)
- Weight Capacity: 300 lbs.
Products
Specifications
Specifications
| Overall Width | 22″ (open) | 9″ (closed) |
|---|---|
| Overall Height | 36″ |
| Seat-To-Floor Height | 18″ |
| Back Height | 18″ |
| Seat Dimensions | 19″ (W) x 15.5″ (D) |
| Overall Length w/ Riggings | 33″ |
| Weight Without Front Riggings | 16.2 lbs |
| Weight With Front Riggings | 18.9 lbs |
| Carton Shipping Weight | 23.8 lbs. |
| Weight Limit | 300 lbs. |
Downloads
Downloads
Owners Manual
Catalog Page
Parts Diagram
Order Now
Order Now
[gravityform id=”1″ title=”false” description=”false”]
Parts
Parts
| Diagram Number | Part Description | Part Number | |
|---|---|---|---|
| 1 | Select | Handle Bar: Blk. (Right) | STDS2A181R |
| 1 | Select | Handle Bar: Blk. (Left) | STDS2A181L |
| 1 | Select | Handle Bar: Blue. (Right) | STDS2A182R |
| 1 | Select | Handle Bar: Blue. (Left) | STDS2A182L |
| 1 | Select | Handle Bar: Red. (Right) | STDS2A183R |
| 1 | Select | Handle Bar: Red. (Left) | STDS2A183L |
| 2 | Select | Back Upholstery: Black | STDS2A1891 |
| 2 | Select | Back Upholstery: Silver Plaid | STDS2A1892 |
| 2 | Select | Back Upholstery: Blue Plaid | STDS2A1893 |
| 4a | Select | Back Release Lever | TRB-1 |
| 4b | Select | Cane Hinge Assm. | STDS001014 |
| 5 | Select | Arm Pad: Black | STDS2A1824 |
| 5 | Select | Arm Pad: Silver Plaid | STDS2A1804 |
| 5 | Select | Arm Pad: Blue Plaid | STDS2A1814 |
| 6 | Select | Brake Assm. (Right) | STDS2A184R |
| 6 | Select | Brake Assm. (Left) | STDS2A184L |
| 7 | Select | Rear Hub Cap | STDS2A1801 |
| 8 | Select | Rear Axle Bolt | STDS2A1811 |
| 9 | Select | Wheel Bearing | STDS1011 |
| 10 | Select | Wheel | STDS2A1800 |
| 11 | Select | Front Axle Bolt | STDS2A1806 |
| 12 | Select | Front Wheel | STDS2A1810 |
| 13 | Select | Footrest: Black | DFLSFBK |
| 13 | Select | Footrest: Blue | DFLSFBL |
| 13 | Select | Footrest: Red | DFLSFRD |
| 14 | Select | Cross Frame: Blue | STDS2A18X1 |
| 14 | Select | Cross Frame: Black | STDS2A18X2 |
| 14 | Select | Cross Frame: Red | STDS2A18X3 |
| 15 | Select | Tipping Anchor | STDS2A1802 |
| 18 | Select | Seat Upholstery: Black | STDS2A1819 |
| 18 | Select | Seat Upholstery: Silver Plaid | STDS2A1829 |
| 18 | Select | Seat Upholstery: Blue Plaid | STDS2A1839 |
| 20 | Select | Handgrip | STDS871 |
| 21 | Select | Fork Assm. | STDS2A1805 |
| 22 | Select | Cross Frame Assist – Blue | STDS2A1803 |
| 22 | Select | Cross Frame Assist – Red | STDS2A1808 |
| 22 | Select | Cross Frame Assist – Black | STDS2A1809 |
| 23 | Select | Seat Rail Pad | STDS2A1807 |
| 24 | Select | 8″ Rear Wheel Bearing | STDS002050 |
| 25 | Select | Footrest Knob | FWSFK |
| 25 | Select | Footrest Knob Receiver | FWSFK-R |
| 26 | Select | Crossframe Screws | STDS2A18XS-4 |
